6-51mm 1/4"-2" 12 volt portable hydraulic hose crimper
THE HYDRAULIC HOSE CRIMPING MACHINE'S DESCRIPTION
FY-51CZ hydraulic hose crimper machine is powered by 12V/24V DC. Average vehicle batteries can meet the power requirements of the crimper. There are few environmental constraints.
ADVANTAGES
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit
TECHNICAL DATA
| Model | FY-51CZ Pipe Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 114(mm) |
| Die Sets | 10 |
| output volume of pump | 4L |
| System Pressure | 30(Mpa) |
| Accuracy | 0.01(mm) |
| the max open tolerance | 30 ±mm |
| Standard Voltage | 12V/24(V) |
| Motor Power | 3.6(KW) |
| Length | 650(mm) |
| Width | 600(mm) |
| Height | 600(mm) |
| Weight | 170(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
| Crimping Range | 6-51mm(1/4''-2''inner diameter of hose) |
| The Largest Crimping Pressure | 600T |
| accurcy | 0.01mm |
| Dimension | 0.75m*0.70m*0.70m(0.37 m³) |
| Maximum open diameter | 114mm |
| dies | 10 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47) |
| Output volume of pump | 4L |
| Rated pressure | 30Mpa |
| Work efficiency | 200pcs/h |
| Weight | 170kg |
| packing dimension | 750*700*700mm |
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
| Crimping Range | 6-51mm(1/4''-2''inner diameter of hose) |
| The Largest Crimping Pressure | 600T |
| accurcy | 0.01mm |
| Dimension | 0.75m*0.70m*0.70m(0.37 m³) |
| Maximum open diameter | 114mm |
| dies | 10 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47) |
| Output volume of pump | 4L |
| Rated pressure | 30Mpa |
| Work efficiency | 200pcs/h |
| Weight | 170kg |
| packing dimension | 750*700*700mm |
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.

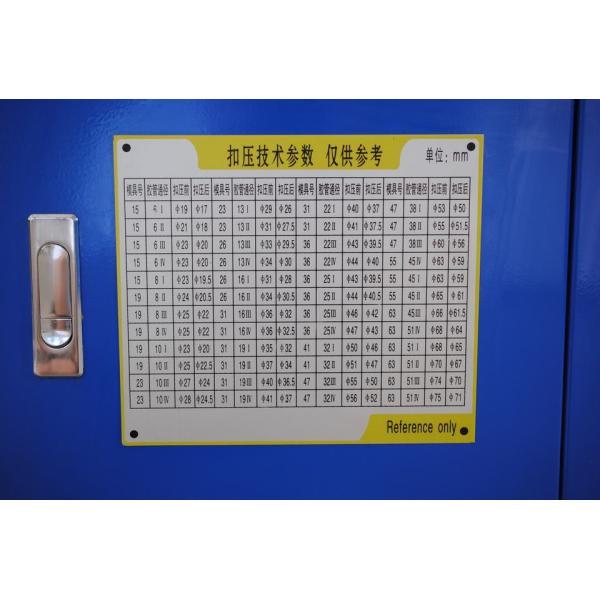

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
