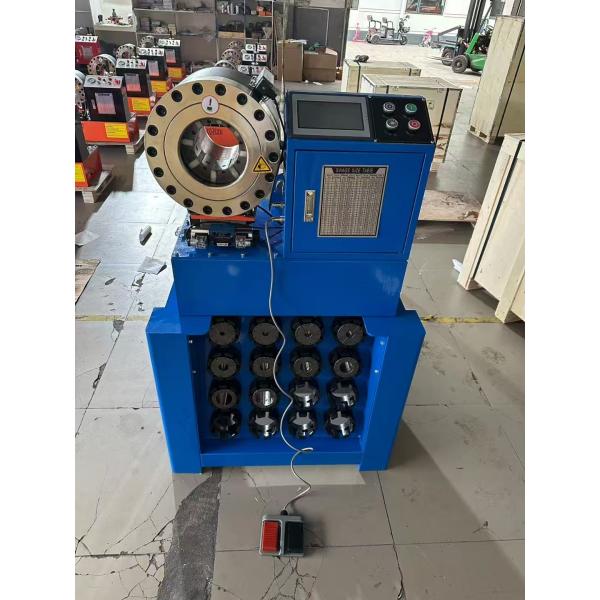

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

Brand Name : FY

Model Number : FY-P38

Certification : CE

Place of Origin : China,Shanghai

MOQ : 1 set

Price : USD$ 1850/1800/1750/1700

Payment Terms : L/C,T/T,D/A,D/P,Western Union,MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 2-7 working days

Packaging Details : wooden box

Voltage : 220V/240V/380V/415V(Optional)

Gross Weight : 300kgs

Net Weight : 275kg

Power(w) : 3KW/4KW

Dimension(l*w*h) : 950*630*700 mm

Package Dimension : 1000*680*750 mm

Warranty : 1 Year

Condition : New

After-sales service provided : Video technical support,Online support

Crimping force : 300Ton/0.3MT

Product name : 6-38mm 1.5 Inch Hose Crimping Machine P38 Braided Hose Crimper High Accuracy 1.5 With Rack And Fast Change Mould Tools/Hydraulic Hose Pressor/hose Crimper

Crimping range : 6-38mm/1.5 inch/2 inch

Color : Blue,blue or customize

Application : Crimp Hose

Free dies : 8sets

System pressure : 26MPA/31.5MPA/260 bar/315 bar

Output Volume Of Pump : 2.5L/5L

HIGH LIGHT : Advanced hydraulic pipe crimping machine, Dash control hydraulic pipe crimping machine, pipe crimping machine

Contact Now

6-38mm 1.5 Inch Hose Crimping Machine P38 Braided Hose Crimper High Accuracy 1.5 With Rack And Fast Change Mould Tools/Hydraulic Hose Pressor/hose Crimper

1.5 Inch Hydraulic Hose Crimping Machine - P38 Model

Product Description

Introducing the 1.5 Inch Hydraulic Hose Crimping Machine (P38), designed for high-precision crimping of hoses ranging from 6mm to 38mm. This advanced crimper features a robust construction with a rack and fast-change mold tools, making it ideal for efficient hose assembly in various industrial applications.

Key Features

High Accuracy Crimping: The P38 model is engineered for precision, ensuring secure and leak-proof connections for braided hoses, essential for high-pressure applications.
Versatile Hose Compatibility: Capable of crimping hoses from 6mm to 38mm, this machine meets the diverse needs of different industries, including automotive and manufacturing.
Fast Change Mold Tools: The innovative rack and fast-change mold design allows for quick adjustments between different hose sizes, significantly reducing downtime during operations.
Durable and Reliable: Built with high-quality materials, this crimping machine is designed to withstand demanding environments, ensuring long-lasting performance.
User-Friendly Operation: The intuitive controls and clear display make it easy for operators to achieve accurate results, even with minimal experience.

Advantages

Consistent Performance: The high accuracy of the P38 model ensures that each crimp is reliable, minimizing the risk of leaks and failures.
Enhanced Efficiency: The fast-change mold system allows for quick transitions between different hose sizes, improving overall productivity.
Durable Construction: Designed to endure rigorous use, this crimper provides reliable performance over time, making it a cost-effective investment.
Low Maintenance Needs: With fewer moving parts and robust design, this machine requires minimal maintenance, allowing for continuous operation.

crimping range	6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure	26Mpa/31.5Mpa(Optional)
The largest crimping pressure	300T
Rular precision	0.01mm
Output volume of pump	2.5L/5L(Optional)
Net weight	275kg
Work efficiency	200pcs/h
size	950630700 mm
dies	8 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

crimping range	6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure	26Mpa/31.5Mpa(Optional)
The largest crimping pressure	300T
Rular precision	0.01mm
Output volume of pump	2.5L/5L(Optional)
Net weight	275kg
Work efficiency	200pcs/h
size	950630700 mm
dies	8 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

TECHNICAL DATA

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38(mm)
Crimping Force	300(T)
Hose Size	1/4-1.5(inch)
Max. Opening	20±mm
Die Sets	8
Maximum Open Diameter	104MM
System Pressure	26(Mpa)/31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 pcs/h
Standard Voltage	220v/240v/380v/415v(optional)
Motor Power	3(KW)/4(KW)
Length	950(mm)
Width	630(mm)
Height	700(mm)
Weight	275(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

► ADVANCED PLC SYSTEM
Multifucntional control panel with different operation mode

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

► DIE SETS
8 die sets hardness 59-63HRC, with quick change tool, productivity improve much.

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

► FAMOUS BRAND MOTOR
World famous motor with high stability

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

► ONE PIECE FORGED OIL CYLINDER
Forged cylinder has higher anti wear ability compared with traditional technology

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

► APPLICATIONS
FY-P38 is a high configured hose crimper, it has the ability of crimping high pressure stainless steel braided hydraulic oil hose, industrial fexible pipes, air or water hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets
